Paintless Dent Puller Kit Dent Repair Tool Set

Item No.:BT211063

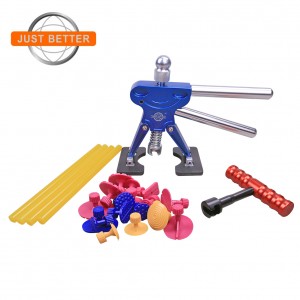

Paintless Dent Puller Kit Dent Repair Tool Set Include:

1pc dent lifter
1pc mini t bar
19pcs glue tabs
4pcs glue sticks




Product Detail

Product Tags

Paintless Dent Puller Kit Dent Repair Tool Set Include

1pc dent lifter

1pc mini t bar

19pcs glue tabs

4pcs glue sticks

Paintless Dent Puller Kit Dent Repair Tool Set Packing

1.Neutral inner box + Ourter Carton.

2.According to your request

Application:Car Body Dent Repair
Function:Repair Car Dent Body
Used for:Repairing Car Body Dents

Advantages:

1.The operation is very simple, basically everyone can operate. Saving time, effort and money is the key.

2.No damage to the paint and body.

Explosion Drawings

BT211062 size

OPERATION AND USE OF ARTICLE

1. Degrease the part to be glued with household alcohol and the sprayer (empty) supplied in the kit ;

It is not necessary to degrease the dent repair suction cup or remove glue residue for better adhesion.

2. Choice of the dent removal suction cup and positioning of the glue on it:

- The choice of the shape and diameter of the dent removal suction cup is made depending on the shape of the impact.

- The glue must be positioned well in the centre of the dent removal suction cup, and the unit in the centre of the impact to be straightened (Figs. 1& 2).

For edge impacts, use the elongated oval body suction cup (provided for this purpose), and position the glue in the centre of it, as shown in fig. 3, then glue the body suction cup as shown in fig.4

1
2
3
4

3.Allow the glue to dry for a few minutes (wait until the dent repair suction cup cools), then insert the dent pull lever (Fig. 5) or T-bar dent puller (Fig. 9) on the upper part of the dent removal suction cup and apply gentle pulses.

5
6

4. If the dent pull lever is used to straighten the sheet metal, it is important to adjust the stroke of the dent removal suction cup using the adjustment knob 1 located on top of the dent puller (Fig. 6). It is recommended not to stay in the same place and to turn around the impact with successive gentle pressures, in order to have different support points during the operation (Fig. 7).

7
8

VISUAL CONTROL

For the control, it is recommended to work in oblique light with the reflection of a double neon light, to assess the details of the painting.

REMOVAL OF THE DENT REPAIR SUCTION CUP

To remove the dent repair suction cups, simply pour a few drops of household alcohol between the suction cup and the sheet metal.

1. If the repaired part has a slight dent, it is recommended to use the equaliser tip holder (Fig. 8) provided in the kit.

2.To remove any remaining traces of glue, use household alcohol with the sprayer.

9
